AWG Sequencer Tab¶

The AWG Sequencer tab is available on all HDAWG Arbitrary Waveform Generator instruments.

Features¶

4- or 8-channel arbitrary waveform generator
64 MSa waveform memory per channel (500 MSa with HDAWG-ME Memory Extension option)
Sequence branching
Digital modulation
Cross-domain trigger engine
Sequence Editor with code highlighting and auto completion
High-level programming language with waveform generation and editing toolset
Waveform viewer

Description¶

The AWG Sequencer tab gives access to the arbitrary waveform generator functionality. Whenever the tab is closed or an additional one of the same type is needed, clicking the following icon will open a new instance of the tab.

Table 2: AWG tab: Control sub-tab
Control/Tool	Option/Range	Description
Start		Runs the AWG.
Sampling Rate	293 kSa/s to 2.4 GSa/s	AWG sampling rate. This value is used by default and can be overridden in the Sequence program. The numeric values are rounded for display purposes. The exact values are equal to the base sampling rate divided by 2^n, where n is an integer between 0 and 13.
Round oscillator frequencies.		Round oscillator frequencies to nearest commensurable with 225 MHz.
Status		Display compiler errors and warnings.
Compile Status	grey/green/yellow/red	Sequence program compilation status. Grey: No compilation started yet. Green: Compilation successful. Yellow: Compiler warnings (see status field). Red: Compilation failed (see status field).
Upload Progress	0% to 100%	The percentage of the sequencer program already uploaded to the device.
Upload Status	grey/yellow/green	Indicates the upload status of the compiled AWG sequence. Grey: Nothing has been uploaded. Yellow: Upload in progress. Green: Compiled sequence has been uploaded.
Register selector		Select the number of the user register value to be edited.
Register	0 to 2^32	Integer user register value. The sequencer has reading and writing access to the user register values during run time.
Input File		External source code file to be compiled.
Example File		Load pre-installed example sequence program.
New		Create a new sequence program.
Revert		Undo the changes made to the current program and go back to the contents of the original file.
Save (Ctrl+S)		Compile and save the current program displayed in the Sequence Editor. Overwrites the original file.
Save as... (Ctrl+Shift+S)		Compile and save the current program displayed in the Sequence Editor under a new name.
Automatic upload	ON / OFF	If enabled, the sequence program is automatically uploaded to the device after clicking Save and if the compilation was successful.
To Device		Sequence program will be compiled and, if the compilation was successful, uploaded to the device.
Multi-Device	ON / OFF	Compile the program for use with multiple devices. If enabled, the program will be compiled for and uploaded to the devices currently synchronized in the Multi-Device Sync tab.
Sync Status	grey/green/yellow	Sequence program synchronization status. Grey: No program loaded on device. Green: Program in sync with device. Yellow: Sequence program in editor differs from the one running on the device.

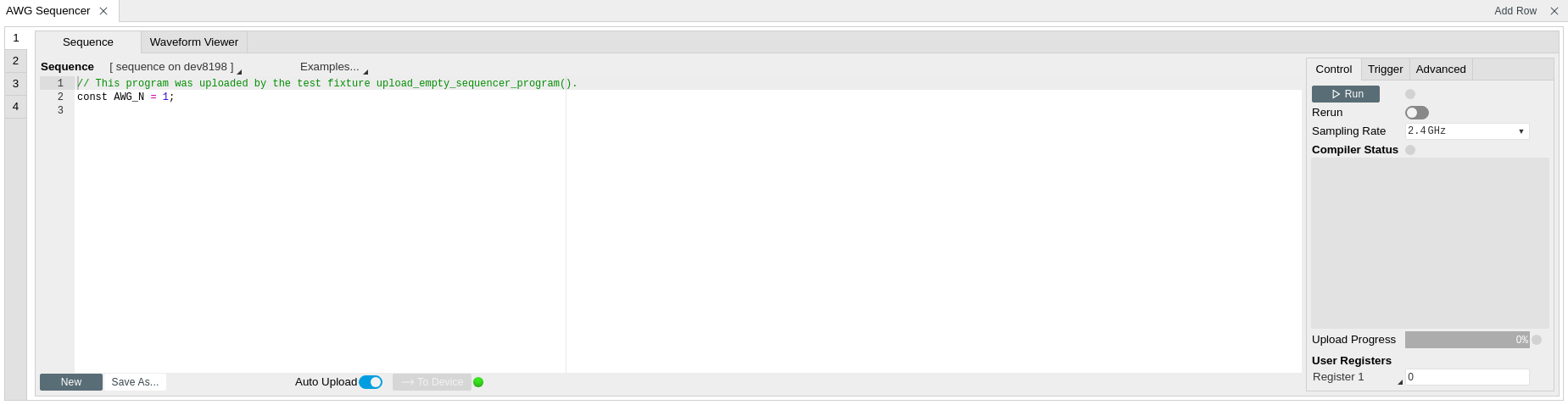

The AWG Sequencer tab (see Figure 1) consists of a settings section on the right side and the Sequence and Waveform Viewer sub-tabs on the left side. The settings section is further divided into Control, Waveform, Trigger, and Advanced sub-tabs. The Sequence sub-tab is used for displaying, editing and compiling a LabOne sequence program. The sequence program defines which waveforms are played and in which order. The Sequence Editor is the main tool for operating the AWG.

A number of sequence programming examples are available through a drop-down menu at the top of the Sequence Editor, and additional ones can be found in Tutorials. The LabOne sequence programming language is specified in detail in LabOne Sequence Programming. The language comes with a number of predefined waveforms, such as Gaussian, Blackman, sine, or square functions. By combining those predefined waveforms using the waveform editing tools (add, multiply, cut, concatenate, etc), signals with a high level of complexity can be generated directly from the Sequence Editor window. Sample-by-sample definition of the output signal is possible by using comma-separated value (CSV) files specified by the user , see AWG Tutorial for an example.

The AWG features a compiler which translates the high-level sequence program into machine instructions and waveform data to be stored in the instrument memory as shown in Figure 2. The sequence program is written using high-level control structures and syntax that are inspired by human language, whereas machine instructions reflect exactly what happens on the hardware level. Writing the sequence program using a high-level language represents a more natural and efficient way of working in comparison to writing lists of machine instructions, which is the traditional way of programming AWGs. Concretely, the improvements rely on features such as:

combination of waveform generation, editing, and playback sequence in a single script
easily readable syntax and naming for run-time variables and constants
optimized waveform memory management, reduced transfers upon waveform changes
definition of user functions and procedures for advanced structuring
syntax validation

By design, there is no one-to-one link between the list of statements in the high-level language and the list of instructions executed by the Sequencer. In order to understand the execution timing, it’s helpful to consider the internal architecture of the AWG, consisting of the Sequencer itself, the Waveform Player, and the Waveform Memory. This is explained in AWG Architecture and Execution Timing.

Figure 2: AWG sequence program compilation process

The Sequence Editor provides the editing, compilation, and transfer functionality for sequence programs. A program typed into the Editor is compiled upon clicking . If the compilation is successful and Automatic Upload is enabled, the program including all necessary waveform data is transferred to the device. If the compilation fails, the Status field will display debug messages. Clicking on allows you to choose a new name for the program. The name of the program that is currently edited is displayed at the top of the editor. External program files as well as waveform data files can be transferred to the right location easily using the file drag-and-drop zone in the Config Tab so they become accessible from the user interface. The files can be managed in the File Manager Tab and their location in the directory structure is shown in Table 3. The program name is displayed in a drop-down box. The box allows quick access to all programs in the standard sequence program location. It is possible to quickly switch between programs using the box. Changes made in one program will be preserved when switching to a different program. The file name of a program will be postfixed by an asterisk in case there are unsaved changes in the source file. Note that switching programs in the editor is not sufficient to also update the program in the instrument. In order to send a newly selected program to the instrument, the button must be clicked.

The channel grouping setting allows configuring the instrument such that the Wave outputs are controlled in groups of 2, 4, or 8. Changing this setting will dynamically adjust the number of side-tabs of the sequence editor as well as the layout of the Signal Generation and Output.

Table 3: Sequence program and waveform file location
File type	Location
Waveform files (Windows)	`C:\Users\<user name>\Documents\Zurich Instruments\LabOne\WebServer\awg\waves`
Sequence programs (Windows)	`C:\Users\<user name>\Documents\Zurich Instruments\LabOne\WebServer\awg\src`
Waveform files (Linux)	`~/Zurich Instruments/LabOne/WebServer/awg/waves`
Sequence programs (Linux)	`~/Zurich Instruments/LabOne/WebServer/awg/src`

In the Control sub-tab the user configures signal parameters and controls the execution of the AWG. The AWG can be started in by clicking on . When enabling the Rerun button, the Sequencer will be restarted automatically when its program completes. The continuous mode is a simple way to create an infinite loop, but it results in a considerable timing jitter. To avoid this jitter, it is recommended to specify infinite loops directly in the sequence program.

The Sampling Rate field is used to control the default playback sampling rate of the AWG. The sampling rate is dynamic, i.e., can be specified for each waveform by using an optional argument in the waveform playback instructions in the sequence program. This allows for considerably reducing waveform upload time for signals that contain both fast and slow components.

The Waveform sub-tab displays information about the waveforms that are used by the current sequence program, such as their length and channel number. Together with the Waveform viewer sub-tab, it is a useful tool to visualize the waveforms used in the sequence program.

On the Trigger sub-tab you can configure the trigger inputs of the AWG. Each AWG core has two internal trigger input channels which can be configured to probe either one of the Trig inputs on the instrument front panel. Trigger levels and input coupling are configured in the DIO Tab. The primary use of the triggers is to control the timing of the AWG signal relative to an external device. The DIO Trigger section allows setup of the dynamic sequencing functionality based on the playWaveDIO and setWaveDIO sequencer instructions. The Advanced sub-tab displays the compiled list of sequencer instructions and the current state of the sequencer on the instrument. This can help an advanced user in debugging a sequence program and understanding its execution.

Sequence Editor Keyboard Shortcuts¶

The tables below list a number of helpful keyboard shortcuts that are applicable in the LabOne Sequence Editor.

Table 4: Line Operations
Shortcut	Action
`Ctrl`+`D`	Remove line
`Alt`+`Shift`+`Down`	Copy lines down
`Alt`+`Shift`+`Up`	Copy lines up
`Alt`+`Down`	Move lines down
`Alt`+`Up`	Move lines up
`Alt`+`Del`	Remove to line end
`Alt`+`Backspace`	Remove to line start
`Ctrl`+`Backspace`	Remove word left
`Ctrl`+`Del`	Remove word right

Table 5: Selection
Shortcut	Action
`Ctrl`+`A`	Select all
`Shift`+`Left`	Select left
`Shift`+`Right`	Select right
`Ctrl`+`Shift`+`Left`	Select word left
`Ctrl`+`Shift`+`Right`	Select word right
`Shift`+`Home`	Select line start
`Shift`+`End`	Select line end
`Alt`+`Shift`+`Right`	Select to line end
`Alt`+`Shift`+`Left`	Select to line start
`Shift`+`Up`	Select up
`Shift`+`Down`	Select down
`Shift`+`Page Up`	Select page up
`Shift`+`Page Down`	Select page down
`Ctrl`+`Shift`+`Home`	Select to start
`Ctrl`+`Shift`+`End`	Select to end
`Ctrl`+`Shift`+`D`	Duplicate selection
`Ctrl`+`Shift`+`P`	Select to matching bracket

Table 6: Go to
Shortcut	Action
`Left`	Go to left
`Right`	Go to right
`Ctrl`+`Left`	Go to word left
`Ctrl`+`Right`	Go to word right
`Up`	Go line up
`Down`	Go line down
`Alt`+`Left`, `Home`	Go to line start
`Alt`+`Right`, `End`	Go to line end
`Page Up`	Go to page up
`Page Down`	Go to page down
`Ctrl`+`Home`	Go to start
`Ctrl`+`End`	Go to end
`Ctrl`+`L`	Go to line
`Ctrl`+`Down`	Scroll line down
`Ctrl`+`Up`	Scroll line up
`Ctrl`+`P`	Go to matching bracket

Table 7: Find/Replace
Shortcut	Action
`Ctrl`+`F`	Find
`Ctrl`+`H`	Replace
`Ctrl`+`K`	Find next
`Ctrl`+`Shift`+`K`	Find previous

Table 8: Folding
Shortcut	Action
`Alt`+`L`	Fold selection
`Alt`+`Shift`+`L`	Unfold

Table 9: Other
Shortcut	Action
`Tab`	Indent
`Shift`+`Tab`	Outdent
`Ctrl`+`Z`	Undo
`Ctrl`+`Shift`+`Z`, `Ctrl`+`Y`	Redo
`Ctrl`+`/`	Toggle comment
`Ctrl`+`Shift`+`U`	Change to lower case
`Ctrl`+`U`	Change to upper case
`Ins`	Overwrite
`Ctrl`+`Shift`+`E`	Macros replay
`Ctrl`+`Alt`+`E`	Macros recording
`Del`	Delete

LabOne Sequence Programming¶

A Simple Example¶

The syntax of the LabOne AWG Sequencer programming language is based on C, but with a few simplifications. Each statement is concluded with a semicolon, several statements can be grouped with curly brackets, and comment lines are identified with a double slash. The following example shows some of the fundamental functionalities: waveform generation, repeated playback, triggering, and single/dual-channel waveform playback. See Tutorials for a step-by-step introduction with more examples.

// Define an integer constant
const N = 4096;
// Create two Gaussian pulses with length N points,
// amplitude +1.0 (-1.0), center at N/2, and a width of N/8
wave gauss_pos = 1.0*gauss(N, N/2, N/8);
wave gauss_neg = -1.0*gauss(N, N/2, N/8);
// execute playback sequence 100 times
repeat (100) {
  // Play pulse on AWG channel 1
  playWave(gauss_pos);
  // Play pulses simultaneously on both AWG channels
  playWave(gauss_pos, gauss_neg);
}

Multi-Instrument Support¶

The HDAWG supports multi-instrument operation by two important features

Automatic synchronization
Multi-instrument sequence program compilation

The first feature ensures that signals of multiple AWGs are precisely aligned in time and the user does not have to worry about cable delays, or about varying trigger delays after power cycles. The second feature greatly simplifies writing sequence program, as it allows to treat a setup with multiple AWGs conceptually like a single instrument.

Automatic synchronization can be set up using the Multi-Device Sync tab and is explained in detail in Multi Device Sync Tab. We assume that two HDAWG have been successfully synchronized according to the instructions in this section. Here we show an example of a sequence program to generate synchronized signals on two instruments

As part of the synchronization procedure using MDS, the LabOne Data Server running on the host PC is connected to both instruments. In the AWG Sequencer tab, set Channel Grouping to MDS. The LabOne AWG Compiler is then able to distribute the high-level, multi-channel program the user enters in the AWG tab across all instruments. The Signal Output on which a given wave w is played is controlled by the integer argument sig_out in the instruction playWave(sig_out, w). The numbering of the Wave Outputs is as follows (assuming an 8-channel instrument):

Channel number in sequence program	Instrument number (according to order in MDS tab)	Wave Output number
1	Leader	1
2	Leader	2
...	...	...
9	Follower 1	1
10	Follower 2	2
...	...	...

The sequence program below contains three playWave instructions: the first instruction generates a pulse on instrument no. 1, the second one on instrument no. 2, and the third playWave instruction generates pulses simultaneously on both instruments.

wave w_gauss = gauss(8000, 4000, 1000);

while (true) {
  setTrigger(1);
  // Pulse on instrument 1 (Wave Output 1):
  playWave(1, w_gauss);
  // Pulse on instrument 2 (Wave Output 1):
  playWave(9, w_gauss);
  // Pulse on AWG 1 (Wave Outputs 1 & 2)
  //   and on AWG 2 (Wave Outputs 1 & 2):
  playWave(1, w_gauss,  2, w_gauss,
           9, w_gauss, 10, w_gauss);
  setTrigger(0);
  wait(100);
}

Keywords and Comments¶

The following table lists the keywords used in the LabOne AWG Sequencer language.

Table 10: Programming keywords
Keyword	Description
`const`	Constant declaration
`var`	Integer variable declaration
`cvar`	Compile-time variable declaration
`string`	Constant string declaration
`true`	Boolean true constant
`false`	Boolean false constant
`for`	For-loop declaration
`while`	While-loop declaration
`repeat`	Repeat-loop declaration
`if`	If-statement
`else`	Else-part of an if-statement
`switch`	Switch-statement
`case`	Case-statement within a switch
`default`	Default-statement within a switch
`return`	Return from function or procedure, optionally with a return value

The following code example shows how to use comments.

const a = 10; // This is a line comment. Everything between the double
              // slash and the end of the line will be ignored.

/* This is a block comment. Everything between the start-of-block-comment
and end-of-block-comment markers is ignored.

For example, the following statement will be ignored by the compiler.
const b = 100;
*/

Constants and Variables¶

Constants may be used to make the program more readable. They may be of integer or floating-point type. It must be possible for the compiler to compute the value of a constant at compile time, i.e., on the host computer. Constants are declared using the const keyword.

Compile-time variables may be used in computations and loop iterations during compile time, e.g. to create large numbers of waveforms in a loop. They may be of integer or floating-point type. They are used in a similar way as constants, except that they can change their value during compile time operations. Compile-time variables are declared using the cvar keyword.

Variables may be used for making simple computations during run time, i.e., on the instrument. The Sequencer supports integer variables, addition, and subtraction. Not supported are floating-point variables, multiplication, and division. Typical uses of variables are to step waiting times , to output DIO values, or to tag digital measurement data with a numerical identifier. Variables are declared using the var keyword.

The following code example shows how to use variables.

var b = 100; // Create and initialize a variable

// Repeat the following block of statements 100 times
repeat (100) {
  b = b + 1; // Increment b
  wait(b);   // Wait 'b' cycles
}

The following table shows the predefined constants. These constants are intended to be used as arguments in certain run-time evaluated functions that encode device parameters with integer numbers. For example, the AWG Sampling Rate is specified as an integer exponent n in the expression (baseSamplingClock)/2ⁿ. The AWG rates constants are specified only for the default base sampling clock of 2.4 GHz. For different values, it’s advised to use directly the exponent n instead of the AWG rates constants.

Constants whose value is marked as "opaque" are meant to always be used instead of their numerical value.

Table 11: Predefined Constants
Name	Value	Description
AWG_RATE_2400MHZ	0	Constant to set Sampling Rate to 2.4 GHz.
AWG_RATE_1200MHZ	1	Constant to set Sampling Rate to 1.2 GHz.
AWG_RATE_600MHZ	2	Constant to set Sampling Rate to 600 MHz.
AWG_RATE_300MHZ	3	Constant to set Sampling Rate to 300 MHz.
AWG_RATE_150MHZ	4	Constant to set Sampling Rate to 150 MHz.
AWG_RATE_75MHZ	5	Constant to set Sampling Rate to 75 MHz.
AWG_RATE_37P5MHZ	6	Constant to set Sampling Rate to 37.5 MHz.
AWG_RATE_18P75MHZ	7	Constant to set Sampling Rate to 18.75 MHz.
AWG_RATE_9P4MHZ	8	Constant to set Sampling Rate to 9.4 MHz.
AWG_RATE_4P5MHZ	9	Constant to set Sampling Rate to 4.5 MHz.
AWG_RATE_2P34MHZ	10	Constant to set Sampling Rate to 2.34 MHz.
AWG_RATE_1P2MHZ	11	Constant to set Sampling Rate to 1.2 MHz.
AWG_RATE_586KHZ	12	Constant to set Sampling Rate to 586 kHz.
AWG_RATE_293KHZ	13	Constant to set Sampling Rate to 293 kHz.
DEVICE_SAMPLE_RATE	<actual device sample rate>
ZSYNC_DATA_RAW	opaque	Constant to use as argument to getFeedback or executeTableEntry. Respectively, returns the last ZSync message received as-is without processing or execute the command table entry with index equal to the last raw ZSync message.
ZSYNC_DATA_PROCESSED_A	opaque	Constant to use as argument to configureFeedbackProcessing, getFeedback or executeTableEntry. Respectively, configure the processing of ZSync messages, returns the last ZSync message received with processing or execute the command table entry with index equal the last ZSync message received with processing.
ZSYNC_DATA_PROCESSED_B	opaque	Constant to use as argument to configureFeedbackProcessing, getFeedback or executeTableEntry. Respectively, configure the processing of ZSync messages, returns the last ZSync message received with processing or execute the command table entry with index equal the last ZSync message received with processing.
AWG_CHAN1	1	Constant to select channel 1.
AWG_CHAN2	2	Constant to select channel 2.
AWG_MARKER1	1	Constant to select marker 1.
AWG_MARKER2	2	Constant to select marker 2.
AWG_OSC_PHASE_START	1	Constant to trigger the oscillator phase on the positive edge.
AWG_OSC_PHASE_MIDDLE	0	Constant to trigger the oscillator phase on the negative edge.

Numbers can be expressed using either of the following formatting.

const a = 10;            // Integer notation
const b = -10;           // Negative number
const h = 0xdeadbeef;    // Hexadecimal integer
const bin = 0b10101;     // Binary integer
const f = 0.1e-3;        // Floating point number.
const not_float = 10e3;  // Not a floating point number

Booleans are specified with the keywords true and false. Furthermore, all numbers that evaluate to a nonzero value are considered true. All numbers that evaluate to zero are considered false.

Strings are delimited using "" and are interpreted as constants. Strings may be concatenated using the + operator.

string AWG_PATH = "awgs/0/";
string AWG_GAIN_PATH = AWG_PATH + "gains/0";

Waveform Generation and Editing¶

The following table contains the definition of functions for waveform generation.

wave zeros(const samples) ¶

Constant amplitude of 0 over the defined number of samples.

\[ h(x) = 0 \]

Args:

samples: Number of samples in the waveform

Returns:

resulting waveform

wave ones(const samples) ¶

Constant amplitude of 1 over the defined number of samples.

\[ h(x) = 1 \]

Args:

samples: Number of samples in the waveform

Returns:

resulting waveform

wave sine(const samples, const amplitude=1.0, const phaseOffset, const nrOfPeriods) ¶

Sine function with arbitrary amplitude (a), phase offset in radians (p), number of periods (f) and number of samples (N).

\[ h(x) = a\cdot\sin(2\pi f \frac{x}{N}+p) \]

Args:

amplitude: Amplitude of the signal (optional)
nrOfPeriods: Number of Periods within the defined number of samples
phaseOffset: Phase offset of the signal in radians
samples: Number of samples in the waveform

Returns:

resulting waveform

wave cosine(const samples, const amplitude=1.0, const phaseOffset, const nrOfPeriods) ¶

Cosine function with arbitrary amplitude (a), phase offset in radians (p), number of periods (f) and number of samples (N).

\[ h(x) = a\cdot\cos(2\pi f \frac{x}{N}+p) \]

Args:

amplitude: Amplitude of the signal (optional)
nrOfPeriods: Number of Periods within the defined number of samples
phaseOffset: Phase offset of the signal in radians
samples: Number of samples in the waveform

Returns:

resulting waveform

wave sinc(const samples, const amplitude=1.0, const position, const beta) ¶

Normalized sinc function with control of peak position (p), amplitude (a), width (\beta) and number of samples (N).

\[ h(x) = \begin{cases} a & \quad \text{if } x = p \\ a \cdot \frac{\sin(2\pi\cdot beta\cdot \frac{x-p}{N})}{2\pi\cdot beta\cdot \frac{x-p}{N}} & \quad \text{else} \\ \end{cases} \]

Args:

amplitude: Amplitude of the signal (optional)
beta: Width of the function
position: Peak position of the function
samples: Number of samples in the waveform

Returns:

resulting waveform

wave ramp(const samples, const startLevel, const endLevel) ¶

Linear ramp from the start (s) to the end level (e) over the number of samples (N).

\[ h(x) = s + \frac{x(e-s)}{N-1} \]

Args:

endLevel: level at the last sample of the waveform
samples: Number of samples in the waveform
startLevel: level at the first sample of the waveform

Returns:

resulting waveform

wave sawtooth(const samples, const amplitude=1.0, const phaseOffset, const nrOfPeriods) ¶

Sawtooth function with arbitrary amplitude, phase in radians and number of periods.

Args:

amplitude: Amplitude of the signal
nrOfPeriods: Number of Periods within the defined number of samples
phaseOffset: Phase offset of the signal in radians
samples: Number of samples in the waveform

Returns:

resulting waveform

wave triangle(const samples, const amplitude=1.0, const phaseOffset, const nrOfPeriods) ¶

Triangle function with arbitrary amplitude, phase in radians and number of periods.

Args:

amplitude: Amplitude of the signal
nrOfPeriods: Number of Periods within the defined number of samples
phaseOffset: Phase offset of the signal in radians
samples: Number of samples in the waveform

Returns:

resulting waveform

wave gauss(const samples, const amplitude=1.0, const position, const width) ¶

Gaussian pulse with arbitrary amplitude (a), position (p), width (w) and number of samples (N).

\[ h(x) = a \cdot e^{-\frac{(x-p)^2}{2 \cdot w^2}} \]

Args:

amplitude: Amplitude of the signal (optional)
position: Peak position of the pulse
samples: Number of samples in the waveform
width: Width of the pulse

Returns:

resulting waveform

wave drag(const samples, const amplitude=1.0, const position, const width) ¶

Derivative of Gaussian pulse with arbitrary amplitude (a), position (p), width (w) and number of samples (N) normalized to a maximum amplitude of 1.

\[ h(x) = a \cdot \frac{\sqrt{e}(p-x)}{w} \cdot e^{-\frac{(x-p)^2}{2 \cdot w^2}} \]

Args:

amplitude: Amplitude of the signal (optional)
position: Center point position of the pulse
samples: Number of samples in the waveform
width: Width of the pulse

Returns:

resulting waveform

wave blackman(const samples, const amplitude=1.0, const alpha) ¶

Blackman window function with arbitrary amplitude (a), alpha parameter and number of samples (N).

\[ \begin{align*} h(x) =& a \cdot (\alpha_0 - \alpha_1 \cos(\frac{2\pi x}{N-1}) \\ &+ \alpha_2\cos(\frac{4\pi x}{N-1})) \\ \alpha_0 =& \frac{1-\alpha}{2}; \quad \alpha_1 = \frac{1}{2}; \quad \alpha_2 = \frac{\alpha}{2}; \end{align*} \]

Args:

alpha: Width of the function
amplitude: Amplitude of the signal (optional)
samples: Number of samples in the waveform

Returns:

resulting waveform

wave hamming(const samples, const amplitude=1.0) ¶

Hamming window function with arbitrary amplitude (a) and number of samples (N).

\[ \begin{align*} h(x) = a \cdot (\alpha - \beta \cos(\frac{2\pi x}{N-1})) \\ \text{with }\alpha = 0.54 \text{ and } \beta = 0.46 \end{align*} \]

Args:

amplitude: Amplitude of the signal (optional)
samples: Number of samples in the waveform

Returns:

resulting waveform

wave hann(const samples, const amplitude=1.0) ¶

Hann window function with arbitrary amplitude (a) and number of samples (N).

\[ h(x) = a \cdot 0.5 \cdot (1 - \cos(\frac{2\pi x}{N-1})) \]

Args:

amplitude: Amplitude of the signal
samples: Number of samples in the waveform

Returns:

resulting waveform

wave rect(const samples, const amplitude) ¶

Rectangle function, constants amplitude (a) over the defined number of samples.

\[ h(x) = \text{a} \]

Args:

amplitude: Amplitude of the signal
samples: Number of samples in the waveform

Returns:

resulting waveform

wave marker(const samples, const markerValue) ¶

Generate a waveform with marker bits set to the specified value. The analog part of the waveform is zero.

Args:

markerValue: Value of the marker bits
samples: Number of samples in the waveform

Returns:

resulting waveform

wave rand(const samples, const amplitude=1.0, const mean, const stdDev) ¶

White noise with arbitrary amplitude, power and standard deviation.

Args:

amplitude: Amplitude of the signal
mean: Average signal level
samples: Number of samples in the waveform
stdDev: Standard deviation of the noise signal

Returns:

resulting waveform

wave randomGauss(const samples, const amplitude=1.0, const mean, const stdDev) ¶

White noise with arbitrary amplitude, power and standard deviation.

Args:

amplitude: Amplitude of the signal
mean: Average signal level
samples: Number of samples in the waveform
stdDev: Standard deviation of the noise signal

Returns:

resulting waveform

wave randomUniform(const samples, const amplitude=1.0) ¶

Random waveform with uniform distribution.

Args:

amplitude: Amplitude of the signal
samples: Number of samples in the waveform

Returns:

resulting waveform

wave lfsrGaloisMarker(const samples, const markerBit, const polynomial, const initial) ¶

Generate a waveform with specified marker bit set to the Galois LFSR (linear-feedback shift register) generated sequence. The analog part of the waveform is zero. The LFSR characteristic polynomial is a member of the Galois Field of two elements and represented in binary form. See wikipedia entries for "Finite field arithmetic" and "Linear-feedback shift register (Galois LFSR)".

Args:

initial: LFSR initial state, any nonzero value will work, usually 0x1
markerBit: Marker bit to set (1 or 2)
polynomial: LFSR characteristic polynomial in binary representation (max shift length 32), use 0x90000 for QRSS / PRBS-20
samples: Number of samples in the waveform

Returns:

resulting waveform

wave chirp(const samples, const amplitude=1.0, const startFreq, const stopFreq, const phase=0) ¶

Frequency chirp function with arbitrary amplitude, start and stop frequency, initial phase in radians and number of samples. Start and stop frequency are expressed in units of the AWG Sampling Rate. The amplitude can only be defined if the initial phase is defined as well.

Args:

amplitude: Amplitude of the signal (optional)
phase: Initial phase of the signal (optional)
samples: Number of samples in the waveform
startFreq: Start frequency of the signal
stopFreq: Stop Frequency of the signal

Returns:

resulting waveform

wave rrc(const samples, const amplitude=1.0, const position, const beta, const width) ¶

Root raised cosine function with arbitrary amplitude (a), position (p), roll-off factor (\beta) and width (w) and number of samples (N).

\[ \begin{align*} h(y) = a \frac{\sin(y \pi(1-\beta)) + 4 y \beta\cos(y \pi(1+\beta))}{y \pi(1-(4 y \beta)^2)} \\ \text{with } y(x) = 2 w \frac{x - p}{N} \end{align*} \]

Args:

amplitude: Amplitude of the signal
beta: Roll-off factor
position: Center point position of the pulse
samples: Number of samples in the waveform
width: Width of the pulse

Returns:

Resulting waveform

wave vect(const value,...) ¶

Specify a waveform sample by sample. Each sample is defined by one of an arbitrary number of input arguments. Only recommended for short waveforms that consist of less than 100 samples. Larger waveforms may be defined in a CSV file.

Args:

value: Waveform amplitude at the respective sample

Returns:

resulting waveform

wave placeholder(const samples, const marker0=false, const marker1=false) ¶

Creates space for a single-channel waveform, optionally with markers, without actually generating any waveform data when compiling the sequence program. Actual waveform data needs to be uploaded separately via the "<dev>/AWGS/<n>/WAVEFORM/WAVES/<index>" API nodes after the sequence compilation and upload. The waveform index can be explicitly assigned to the generated placeholder wave using the assignWaveIndex instruction.

Args:

marker0: true if marker bit 0 must be used (default false)
marker1: true if marker bit 1 must be used (default false)
samples: Number of samples in the waveform

Returns:

waveform object

The following table contains the definition of functions for waveform editing.

wave join(wave wave1, wave wave2, const interpolLength=0) ¶

Connect two or more waveforms with optional linear interpolation between the waveforms.

Args:

interpolLength: Number of samples to interpolate between waveforms (optional, default 0)
wave1: Input waveform
wave2: Input waveform

Returns:

joined waveform

wave join(wave wave1, wave wave2,...) ¶

Connect two or more waveforms.

Args:

wave1: Input waveform
wave2: Input waveform

Returns:

joined waveform

wave interleave(wave wave1, wave wave2,...) ¶

Interleave two or more waveforms sample by sample.

Args:

wave1: Input waveform
wave2: Input waveform

Returns:

interleaved waveform

wave add(wave wave1, wave wave2,...) ¶

Add two or more waveforms sample by sample. Alternatively, the "+" operator may be used for waveform addition.

Args:

wave1: Input waveform
wave2: Input waveform

Returns:

sum waveform

wave multiply(wave wave1, wave wave2,...) ¶

Multiply two or more waveforms sample by sample. Alternatively, the "*" operator may be used for waveform multiplication.

Args:

wave1: Input waveform
wave2: Input waveform

Returns:

product waveform

wave scale(wave waveform, const factor) ¶

Scale the input waveform with the factor and return the scaled waveform. The input waveform remains unchanged.

Args:

factor: Scaling factor
waveform: Input waveform

Returns:

scaled waveform

wave flip(wave waveform) ¶

Flip the input waveform back to front and return the flipped waveform. The input waveform remains unchanged.

Args:

waveform: Input waveform

Returns:

flipped waveform

wave cut(wave waveform, const from, const to) ¶

Cuts a segment out of the input waveform and returns it. The input waveform remains unchanged. The segment is flipped in case that "from" is larger than "to".

Args:

from: First sample of the cut waveform
to: Last sample of the cut waveform
waveform: Input waveform

Returns:

cut waveform

wave filter(wave b, wave a, wave x) ¶

Filter generates a rational transfer function with the waveforms a and b as numerator and denominator coefficients. The transfer function is normalized by the first element of a, which has to be non-zero. The filter is applied to the input waveform x and returns the filtered waveform.

\[ \begin{align*} y(n) = \frac{1}{a_0}\left(\!\sum_{i=0}^{M}b_i x_{n-i} - \sum_{i=1}^{N}a_i y_{n-i}\!\right) \\ \text{with } M = \text{length}(b)-1 \\ \text{ and } N = \text{length}(a)-1 \end{align*} \]

Args:

a: Denominator coefficients
b: Numerator coefficients
x: Input waveform

Returns:

filtered waveform

wave circshift(wave a, const n) ¶

Circularly shifts a 1D waveform and returns it.

Args:

n: Number of elements to shift
waveform: Input waveform

Returns:

circularly shifted waveform

Waveform Playback and Predefined Functions¶

The following table contains the definition of functions for waveform playback and other purposes.

void setDIO(var value) ¶

Writes the value as a 32-bit value to the DIO bus.

The value can be either a const or a var value. Configure the Mode setting in the DIO tab when using this command. The DIO interface speed of 50 MHz limits the rate at which the DIO output value is updated.

Args:

value: The value to write to the DIO (const or var)

var getDIO() ¶

Reads a 32-bit value from the DIO bus.

Returns:

var containing the read value

var getDIOTriggered() ¶

Reads a 32-bit value from the DIO bus as recorded at the last DIO trigger position.

Returns:

var containing the read value

void setTrigger(var value) ¶

Sets the AWG Trigger output signals.

The state of all four AWG Trigger output signals is represented by the bits in the binary representation of the integer value. Binary notation of the form 0b0000 is recommended for readability.

Args:

value: to be written to the trigger output lines

void wait(var cycles) ¶

Waits for the given number of Sequencer clock cycles (3.33 ns per cycle). The execution of the instruction adds an offset of 3 clock cycles, i.e., the statement wait(0) leads to a waiting time of 9.99 ns.

Args:

cycles: number of cycles to wait

void waitDIOTrigger() ¶

Waits until the DIO interface trigger is active. The trigger is specified by the Strobe Index and Strobe Slope settings in the AWG Sequencer tab.

var getDigTrigger(const index) ¶

Gets the state of the indexed Digital Trigger input (1 or 2 on UHF, 1-8 on HDAWG).

The physical signal connected to the AWG Digital Trigger input is to be configured in the Trigger sub-tab of the AWG tab.

Args:

index: index of the Digital Trigger input to be read; can be either 1 or 2 on UHF, or 1-8 on HDAWG

Returns:

trigger state, either 0 or 1

void error(string msg,...) ¶

Throws the given error message when reached.

Args:

msg: Message to be displayed

void info(string msg,...) ¶

Returns the specified message when reached.

Args:

msg: Message to be displayed

void setInt(string path, var value) ¶

Writes an integer value to one of the nodes in the device.

If the path does not start with a device identifier, then the current device is assumed.

Args:

path: The node path to be written to
value: The integer value to be written

void setDouble(string path, var value) ¶

Writes a floating point value to one of the nodes in the device.

If the path does not start with a device identifier, then the current device is assumed.

Args:

path: The node path to be written to
value: The integer or floating point value to be written

void setDouble(string path, var value, const scale) ¶

Writes a floating point value to one of the nodes in the device.

If the path does not start with a device identifier, then the current device is assumed.

Args:

path: The node path to be written to
scale: Scaling value to be applied to the value before writing to the node
value: The integer or floating point value to be written

void setID(var id) ¶

Sets the ID value that is attached to data streamed from the device to the host PC. The ID value is useful for synchronizing the data acquisition process in combination with the Sweeper or the Software Trigger. The ID value is denoted AWG Seq Index in the tree of tools like the plotter.

Args:

id: The new ID to be attached to streaming data of the device

void setSeqIndex(var id) ¶

Sets the ID value that is attached to data streamed from the device to the host PC. The ID value is useful for synchronizing the data acquisition process in combination with the Sweeper or the Software Trigger. The ID value is denoted AWG Seq Index in the tree of tools like the plotter. The setSeqIndex function is identical to the setID function.

Args:

id: The new ID to be attached to streaming data of the device

void sync() ¶

Perform Multi-Device synchronization command for all devices at this point. Leader/Follower assignment is automatic.

Only for programs running on multiply synchronized instruments.

void waitWave() ¶

Waits until the AWG is done playing the current waveform.

void randomSeed() ¶

Generate a new seed for the subsequent random vector commands.

void assignWaveIndex(const output, wave waveform, const index) ¶

void assignWaveIndex(wave waveform, const index) ¶

void playWave(const output, wave waveform, const rate=AWG_RATE_DEFAULT) ¶

Starts to play the given waveforms on the defined output channels. The playback begins as soon as the previous waveform playback is finished.

Args:

output: defines on which output the following waveform is played
rate: sample rate with which the AWG plays the waveforms (default set in the user interface).
waveform: waveform to be played

void playWave(const output, wave waveform,...) ¶

Starts to play the given waveforms on the defined output channels. It can contain multiple waveforms with an output definition. The playback begins as soon as the previous waveform playback is finished.

Args:

output: defines on which output the following waveform is played
waveform: waveform to be played

void playWave(wave waveform, const rate=AWG_RATE_DEFAULT) ¶

Starts to play the given waveforms, output channels are assigned automatically depending on the number of input waveforms. The playback begins as soon as the previous waveform playback is finished.

Args:

rate: sample rate with which the AWG plays the waveforms (default set in the user interface).
waveform: waveform to be played

void playWave(wave waveform,...) ¶

Starts to play the given waveforms, output channels are assigned automatically depending on the number of input waveforms. The playback begins as soon as the previous waveform playback is finished.

Args:

waveform: waveform to be played

void setUserReg(const register, var value) ¶

Writes a value to one of the User Registers (indexed 0 to 15).

The User Registers may be used for communicating information to the LabOne User Interface or a running API program.

Args:

register: The register index (0 to 15) to be written to
value: The integer value to be written

var getUserReg(const register) ¶

Reads the value from one of the User Registers (indexed 0 to 15). The User Registers may be used for communicating information to the LabOne User Interface or a running API program.

Args:

register: The register to be read (0 to 15)

Returns:

current register value

void playZero(var samples) ¶

Starts to play zeros on all channels for the specified number of samples. Behaves as if same length all-zeros waveform is played using playWave, but without consuming waveform memory.

Args:

samples: Number of samples to be played. The same min length and granularity applies as for regular waveforms.

void playZero(var samples, const rate) ¶

Starts to play zeros on all channels for the specified number of samples. Behaves as if same length all-zeros waveform is played using playWave, but without consuming waveform memory.

Args:

rate: Sample rate with which the AWG plays zeros (default set in the user interface).
samples: Number of samples to be played. The same min length and granularity applies as for regular waveforms.

void prefetch(const output, wave waveform,...) ¶

Prefetches the given waveforms for the defined output channels into the cache memory. Use this function before a conditional branching point to prefetch all waveforms that are potentially played immediately after the conditional branching.

Args:

output: defines on which output the following waveform to be played
waveform: waveform to be played

void prefetch(wave waveform,...) ¶

Prefetches the given waveforms into the cache memory. Output channels are assigned automatically depending on the number of input waveforms. Use this function before a conditional branching point to prefetch all waveforms that are potentially played immediately after the conditional branching.

Args:

waveform: waveform to be played

void playWaveDigTrigger(const trigger, const output, wave waveform, const rate=AWG_RATE_DEFAULT) ¶

Starts to play the given waveforms on the defined output channels. The playback begins as soon as the previous waveform playback is finished and the given trigger is detected.

Args:

output: defines on which output the following waveform is played
rate: sample rate with which the AWG plays the waveforms (default set in the user interface).
trigger: defines which trigger input should start the waveform playback. Note that the index refers to the physical trigger input on the front panel of the corresponding AWG core and ignores the digital trigger configuration.
waveform: waveform to be played

void playWaveDigTrigger(const trigger, const output, wave waveform,...) ¶

Starts to play the given waveforms on the defined output channels. It can contain multiple waveforms with an output definition. The playback begins as soon as the previous waveform playback is finished and the given trigger is detected.

Args:

output: defines on which output the following waveform is played
trigger: defines which trigger input should start the waveform playback. Note that the index refers to the physical trigger input on the front panel of the corresponding AWG core and ignores the digital trigger configuration.
waveform: waveform to be played

void playWaveDigTrigger(const trigger, wave waveform, const rate=AWG_RATE_DEFAULT) ¶

Starts to play the given waveforms, output channels are assigned automatically depending on the number of input waveforms. The playback begins as soon as the previous waveform playback is finished and the given trigger is detected.

Args:

rate: sample rate with which the AWG plays the waveforms (default set in the user interface).
trigger: defines which trigger input should start the waveform playback. Note that the index refers to the physical trigger input on the front panel of the corresponding AWG core and ignores the digital trigger configuration.
waveform: waveform to be played

void playWaveDigTrigger(const trigger, wave waveform,...) ¶

Starts to play the given waveforms, output channels are assigned automatically depending on the number of input waveforms. The playback begins as soon as the previous waveform playback is finished and the given trigger is detected.

Args:

trigger: defines which trigger input should start the waveform playback. Note that the index refers to the physical trigger input on the front panel of the corresponding AWG core and ignores the digital trigger configuration.
waveform: waveform to be played

void playWaveDIO() ¶

Starts to play a waveform from the table defined by the command table. The waveform is selected according to the integer codeword currently read on the DIO interface. The codeword is specified by the Codeword Mask and Codeword Shift settings in the AWG Sequencer tab.

void waitDigTrigger(const index) ¶

Waits for the reception of a trigger signal on the indexed Digital Trigger (index 1 or 2). The physical signals connected to the two AWG Digital Triggers are to be configured in the Trigger sub-tab of the AWG Sequencer tab. The Digital Triggers are configured separately for each AWG Core.

Args:

index: Index of the digital trigger input; can be either 1 or 2.

void waitSineOscPhase(const sine) ¶

Waits until the oscillator phase of the indexed sine generator (1-2) reaches a zero crossing (negative -> positive, start of sine period).

This command is not supported in the 2x4 and 1x8 channel grouping modes.

Args:

sine: index of the sine generator to be waited on, can be 1 or 2

void resetOscPhase(const mask) ¶

Reset the phase of the oscillators specified by the binary mask argument. Sequence programs using these instructions can only be run when AWG Oscillator Control is enabled. Each AWG core can access only a subset of all oscillators. On instruments with HDAWG-MF option, core 1 can access oscillators 1-4, core 2 oscillators 5-8, etc.

Args:

mask: one-hot encoding to reset phase of individual oscillators

void resetOscPhase() ¶

Reset the phase of all oscillators controllable by the AWG cores in use. Sequence programs using these instructions can only be run when AWG Oscillator Control is enabled.

void playHold(var samples) ¶

Hold the last played value for the specified number of samples samples. Behaves as if same length constant waveform is played using playWave, but without consuming waveform memory.

Args:

samples: Number of samples to be played. The same min length and granularity applies as for regular waveforms.

void playHold(var samples, const rate) ¶

Hold the last played value for the specified number of samples samples. Behaves as if same length constant waveform is played using playWave, but without consuming waveform memory.

Args:

rate: Sample rate with which the AWG plays zeros (default set in the user interface).
samples: Number of samples to be played. The same min length and granularity applies as for regular waveforms.

void setSinePhase(const sine, const phase) ¶

Set the phase in units of degree of the first (index 0) or second (index 1) sine generator of the AWG core in use. When used in channel grouping modes 1x8, 2x4, or 1x4, this instruction will set the phase of the first/second sine generator of all involved AWG cores. The phase is reset to 0 after execution of the sequence program.

Args:

phase: Phase value [degree]
sine: Sine generator relative index (0 or 1)

void incrementSinePhase(const sine, const phase) ¶

Increment the phase of the first (index 0) or second (index 1) sine generator of the AWG core in use by the given value in degrees. When used in channel grouping modes 1x8, 2x4, or 1x4, this instruction will increment the phase of the first/second sine generator of all involved AWG cores. The phase is reset to 0 after execution of the sequence program.

Args:

phase: Phase increment value [degree]
sine: Sine generator relative index (0 or 1)

var getCnt(const counter) ¶

Reads the value from one of the Pulse Counters.

The Pulse Counters can be used for measuring and counting events on the trigger inputs. Each AWG Sequencer is connected to a pair of Pulse Counters.

Args:

counter: The counter to be read; can be either 0 or 1.

Returns:

current counter value

void waitCntTrigger(const counter) ¶

Waits until the given Pulse Counter is active. Each AWG Sequencer is connected to a pair of Pulse Counters.

Args:

counter: The index of the counter connected to the AWG Sequencer; can be either 0 or 1.

void setPrecompClear(const value) ¶

Set the configuration for the synchronous clearing of the precompensation filters. The precompensation filter are cleared synchronously with the waveforms played by the playWave or playWaveDIO commands.

Args:

value: Whether to clear the precompensation (0: no, 1: yes)

void waitPlayQueueEmpty() ¶

Waits until the AWG has started playing the current waveform.

void executeTableEntry(var index) ¶

Execute the entry of the command table with the given index. An entry of the command table contains a waveform playback instruction as well as instructions for real-time setting of sine generators phases and output amplitude. Independent of channel grouping mode, there is one command table per AWG core. In channel grouping modes 1x8, 2x4, 1x4, this instruction will execute the entry with the given index on all AWG cores involved simultaneously. This entry therefore needs to be defined in the command tables of all involved cores.

Args:

index: table entry that shall be executed.

void setPRNGSeed(var value) ¶

Sets the seed for the linear-shift feedback register lsfr of the pseudo random number generator (PRNG).

The seed is a 16 bit int32_t value. Zero is invalid as seed.

Args:

value: seed value to be configured

var getPRNGValue() ¶

Returns a random value from the pseudo-random number generator (PRNG). The PRNG is implemented as a Galois linear-shift feedback register according to the pseudo code below. The feedback register lsfr is initialized to a seed value using the function setPRNGSeed. The values lower and upper are set using the function setPRNGRange. The feedback register lsfr is stored from one call of the function getPRNGValue to the next, which renders the pseudo code recursive. In the pseudo code, XOR and AND are bitwise logical operators, and >> is the right bit shift operator. Pseudo code: lsb = lsfr AND 1; lsfr = lsfr >> 1; if (lsb == 1) then: lsfr = 0xb400 XOR lsfr; rand = ((lsfr * (upper-lower+1) >> 16) + lower) AND 0xffff;.

Returns:

Random value rand

void setPRNGRange(var lower, var upper) ¶

Configures the range of the pseudo random number generator (PRNG) to generate output in range [lower, upper].

Args:

lower: lower bound of range, 0 ... 2**16-1
upper: upper bound of range, 0 ... 2**16-1

var getFeedback(const data_type) ¶

Read the last received feedback message. The argument specify which data the function should return.

Args:

data_type: Specifies which data the function should return: ZSYNC_DATA_RAW: Returns the last ZSync message received as-is without processing. ZSYNC_DATA_PROCESSED_A: Returns the last ZSync message received with processing. ZSYNC_DATA_PROCESSED_B: Returns the last ZSync message received with processing.

Returns:

var containing the read value

var getFeedback(const data_type, var wait_cycles) ¶

Read the last received feedback message. The argument specify which data the function should return.

Args:

data_type: Specifies which data the function should return: ZSYNC_DATA_RAW: Returns the last ZSync message received as-is without processing. ZSYNC_DATA_PROCESSED_A: Returns the last ZSync message received with processing. ZSYNC_DATA_PROCESSED_B: Returns the last ZSync message received with processing.
wait_cycles: Wait for the specified number of cycles after the most recent waitZSyncTrigger() instruction.

Returns:

var containing the read value

void waitZSyncTrigger() ¶

Waits for a trigger over ZSync.

void resetRTLoggerTimestamp() ¶

Reset the timestamp counter of the Real-Time Logger.

Accessing Instrument Settings¶

Using the sequencer instructions setInt and setDouble, a large number of instrument settings may be accessed directly from the sequencer with a much shorter latency than when accessed via the LabOne API. The nodes accessible with setInt setDouble are a subset of the full list of device nodes accessible via the LabOne API (see Device Node Tree ) and are listed in the table below together with their data type, latency class, and timing determinicity characteristics.

There are 3 levels of latency performance depending on how the node settings are processed on the instrument. Nodes that are classified with latency "medium" are processed with the instrument firmware by a non-realtime processor. These nodes are set typically within 100 microseconds, however not with deterministic timing. For some of the nodes, additional time is needed to take effect due to the time scale of the related hardware settings, e.g. changing the settings of the analog signal path. This needs to be taken into account by including sufficient waiting time by a wait sequencer instruction after setting the node.

Nodes classified with latency "low" are processed with deterministic timing on a dedicated bus inside the FPGA. The latency is of the order of 100 nanoseconds. Nodes classified with latency "ultra-low", such as timing-critical phase changes, are accessed via their dedicated signal path on the FPGA, and offer similarly low and deterministic latency as e.g. playWave instructions.

Providing the node as a character string is less flexible from the AWG sequencer than from the API: wildcards (*) are not supported, the node cannot start with a dash (/), and the device ID cannot be specified since it is excluded that the sequencer accesses other devices. This code example illustrates these restrictions:

setDouble("oscs/1/freq", 1e6); // permitted
setDouble("oscs/*/freq", 1e6); // not permitted
setDouble("dev8000/oscs/1/freq", 1e6); // not permitted
setDouble("/dev8000/oscs/1/freq", 1e6); // not permitted
setDouble("/oscs/1/freq", 1e6); // not permitted

In the table, the sequence [i-j] indicate a numeric range of valid indices from i to j

Node	Data Type	Latency	Deterministic timing
sines/[0-7]/enables/[0-1]	Integer	medium	no
sines/[0-7]/amplitudes/[0-1]	Float	medium	no
awgs/[0-3]/outputs/[0-1]/gains/[0-1]	Float	medium	no
awgs/[0-3]/outputs/[0-1]/modulation/carriers/[0-3]/oscselect	Integer	medium	no
awgs/[0-3]/outputs/[0-1]/modulation/carriers/[0-3]/phaseshift	Float	medium	no
awgs/[0-3]/outputs/[0-1]/modulation/carriers/[0-3]/harmonic	Integer	medium	no
oscs/[0-15]/freq	Frequency	low	yes
sines/[0-7]/oscselect	Integer	low	yes
sines/[0-7]/phaseshift	Phase	ultra-low	yes
sines/[0-7]/harmonic	Integer	low	yes

Nodes accessible with setInt and setDouble

Nodes starting with awgs/[0-3] can only be accessed from within the sequencer of the same index, or from within a sequencer belonging to the same group in the case grouped mode is enabled.

Expressions¶

Expressions may be used for making computations based on mathematical functions and operators. There are two kinds of expressions: those evaluated at compile time (the moment of clicking "Save" or "Save as..." in the user interface), and those evaluated at run time (after clicking "Run/Stop" or "Start"). Compile-time evaluated expressions only involve constants (const) or compile-time variables (cvar) and can be computed at compile time by the host computer. Such expressions can make use of standard mathematical functions and floating point arithmetic. Run-time evaluated expressions involve variables (var) and are evaluated by the Sequencer on the instrument. Due to the limited computational capabilities of the Sequencer, these expressions may only operate on integer numbers and there are less operators available than at compile time.

The following table contains the list of mathematical functions supported at compile time.

Table 12: Mathematical Functions
Function	Description
const abs(const c)	absolute value
const acos(const c)	inverse cosine
const acosh(const c)	hyperbolic inverse cosine
const asin(const c)	inverse sine
const asinh(const c)	hyperbolic inverse sine
const atan(const c)	inverse tangent
const atanh(const c)	hyperbolic inverse tangent
const cos(const c)	cosine
const cosh(const c)	hyperbolic cosine
const exp(const c)	exponential function
const ln(const c)	logarithm to base e (2.71828...)
const log(const c)	logarithm to the base 10
const log2(const c)	logarithm to the base 2
const log10(const c)	logarithm to the base 10
const sign(const c)	sign function -1 if x<0; 1 if x>0
const sin(const c)	sine
const sinh(const c)	hyperbolic sine
const sqrt(const c)	square root
const tan(const c)	tangent
const tanh(const c)	hyperbolic tangent
const ceil(const c)	smallest integer value not less than the argument
const round(const c)	round to nearest integer
const floor(const c)	largest integer value not greater than the argument
const avg(const c1, const c2,...)	mean value of all arguments
const max(const c1, const c2,...)	maximum of all arguments
const min(const c1, const c2,...)	minimum of all arguments
const pow(const base, const exp)	first argument raised to the power of second argument
const sum(const c1, const c2,...)	sum of all arguments

The following table contains the list of predefined mathematical constants. These can be used for convenience in compile-time evaluated expressions.

Table 13: Predefined Constants
Name	Value	Description
M_E	2.71828182845904523536028747135266250	e
M_LOG2E	1.44269504088896340735992468100189214	log2(e)
M_LOG10E	0.434294481903251827651128918916605082	log10(e)
M_LN2	0.693147180559945309417232121458176568	loge(2)
M_LN10	2.30258509299404568401799145468436421	loge(10)
M_PI	3.14159265358979323846264338327950288	pi
M_PI_2	1.57079632679489661923132169163975144	pi/2
M_PI_4	0.785398163397448309615660845819875721	pi/4
M_1_PI	0.318309886183790671537767526745028724	1/pi
M_2_PI	0.636619772367581343075535053490057448	2/pi
M_2_SQRTPI	1.12837916709551257389615890312154517	2/sqrt(pi)
M_SQRT2	1.41421356237309504880168872420969808	sqrt(2)
M_SQRT1_2	0.707106781186547524400844362104849039	1/sqrt(2)

Table 14: Operators supported at compile time
Operator	Description	Priority
`=`	assignment	-1
`+=, -=, *=, /=, %=, &=, \|=, <<=, >>=`	assignment by sum, difference, product, quotient, remainder, AND, OR, left shift, and right shift	-1
`\|\|`	logical OR	1
`&&`	logical AND	2
`\|`	bit-wise logical OR	3
`&`	bit-wise logical AND	4
`!=`	not equal	5
`==`	equal	5
`<=`	less or equal	6
`>=`	greater or equal	6
`>`	greater than	6
`<`	less than	6
`<<`	arithmetic left bit shift	7
`>>`	arithmetic right bit shift	7
`+`	addition	8
`-`	subtraction	8
`*`	multiplication	9
`/`	division	9
`~`	bit-wise logical negation	10

Table 15: Operators supported at run time
Operator	Description	Priority
`=`	assignment	-1
`+=, -=, *=, /=, %=, &=, \|=, <<=, >>=`	assignment by sum, difference, product, quotient, remainder, AND, OR, left shift, and right shift	-1
`\|\|`	logical OR	1
`&&`	logical AND	2
`\|`	bit-wise logical OR	3
`&`	bit-wise logical AND	4
`==`	equal	5
`!=`	not equal	5
`<=`	less or equal	6
`>=`	greater or equal	6
`>`	greater than	6
`<`	less than	6
`<<`	left bit shift	7
`>>`	right bit shift	7
`+`	addition	8
`-`	subtraction	8
`~`	bit-wise logical negation	9

Control Structures¶

Functions may be declared using the var keyword. Procedures may be declared using the void keyword. Functions must return a value, which should be specified using the return keyword. Procedures can not return values. Functions and procedures may be declared with an arbitrary number of arguments. The return keyword may also be used without arguments to return from an arbitrary point within the function or procedure. Functions and procedures may contain variable and constant declarations. These declarations are local to the scope of the function or procedure.

var function_name(argument1, argument2, ...) {
  // Statements to be executed as part of the function.
  return constant-or-variable;
}

void procedure_name(argument1, argument2, ...) {
  // Statements to be executed as part of the procedure.
  // Optional return statement
  return;
}

An if-then-else structure is used to create a conditional branching point in a sequencer program.

// If-then-else statement syntax
if (expression) {
  // Statements to execute if 'expression' evaluates to 'true'.
} else {
  // Statements to execute if 'expression' evaluates to 'false'.
}

// If-then-else statement short syntax
(expression)?(statement if true):(statement if false)

// If-then-else statement example
const REQUEST_BIT     = 0x0001;
const ACKNOWLEDGE_BIT = 0x0002;
const IDLE_BIT        = 0x8000;
var dio = getDIO();
if (dio & REQUEST_BIT) {
  dio = dio | ACKNOWLEDGE_BIT;
  setDIO(dio);
} else {
  dio = dio | IDLE_BIT;
  setDIO(dio);
}

A switch-case structure serves to define a conditional branching point similarly to the if-then-else statement, but is used to split the sequencer thread into more than two branches. Unlike the if-then-else structure, the switch statement is synchronous, which means that the execution time is the same for all branches and determined by the execution time of the longest branch. If no default case is provided and no case matches the condition, all cases will be skipped. The case arguments need to be of type const.

// Switch-case statement syntax
switch (expression) {
  case const-expression:
    expression;
  ...
  default:
    expression;
}

// Switch-case statement example
switch (getDIO()) {
  case 0:
    playWave(gauss(1024,1.0,512,64));
  case 1:
    playWave(gauss(1024,1.0,512,128));
  case 2:
    playWave(drag(1024,1.0,512,64));
  default:
    playWave(drag(1024,1.0,512,128));
}

The for loop is used to iterate through a code block several times. The initialization statement is executed before the loop starts. The end-expression is evaluated at the start of each iteration and determines when the loop should stop. The loop is executed as long as this expression is true. The iteration-expression is executed at the end of each loop iteration.

Depending on how the for loop is set up, it can be either evaluated at compile time or at run time. Run-time evaluation is typically used to play series of waveforms. Compile-time evaluation is typically used for advanced waveform generation, e.g. to generate a series of waveforms with varying amplitude. For a run-time evaluated for loop, use the var data type as a loop index. To ensure that a loop is evaluated at compile time, use the cvar data type as a loop index. Furthermore, the compile-time for loop should only contain waveform generation/editing operations and it can’t contain any variables of type var. The following code example shows both versions of the loop.

// For loop syntax
for (initialization; end-expression; iteration-expression) {
  // Statements to execute while end-expression evaluates to true
}

// FOR loop example to assemble a train of pulses into
// a single waveform (compile-time execution)
cvar gain_factor; // CVAR: integer or float values allowed
wave w_pulse_series;
for (gain_factor = 0; gain_factor < 1.0; gain_factor = gain_factor + 0.1) {
  w_pulse_series = join(w_pulse_series, gain_factor*gauss(1008, 504, 100));
}

// Playback of waveform defined using compile-time FOR loop
playWave(w_pulse_series);

// FOR loop example to vary waiting time between
// waveform playbacks (run-time execution)
var i; // VAR: integer values allowed
for (i = 0; i < 1000; i = i + 100) {
  playWave(gauss(1008, 504, 100));
  waitWave();
  wait(i);
}

The while loop is a simplified version of the for loop. The end-expression is evaluated at the start of each loop iteration. The contents of the loop are executed as long as this expression is true. Like the for loop, this loop comes in a compile-time version (if the end-expression involves only cvar and const) and in a run-time version (if the end-expression involves also var data types).

// While loop syntax
while (end-expression) {
 // Statements to execute while end-expression evaluates to true
}

// While loop example
const STOP_BIT = 0x8000;
var run = 1;
var i = 0;
var dio = 0;
while (run) {
  dio = getDIO();
  run = dio & STOP_BIT;

  dio = dio | (i & 0xff);
  setDIO(dio);
  i = i + 1;
}

The repeat loop is a simplified version of the for loop. It repeats the contents of the loop a fixed number of times. In contrast to the for loop, the repetition number of the repeat loop must be known at compile time, i.e., const-expression can only depend on constants and not on variables. Unlike the for and the while loop, this loop comes only in a run-time version. Thus, no cvar data types may be modified in the loop body.

// Repeat loop syntax
repeat (constant-expression) {
  // Statements to execute
}

// Repeat loop example
repeat (100) {
  setDIO(0x1);
  wait(10);
  setDIO(0x0);
  wait(10);
}

Usage of playZero and playHold commands¶

The functionalities of playHold and playZero are both available either through sequencer commands or through the command table. To use within a sequence, only the length in samples must be specified, as in playHold(32) or playZero(128). The sequencer commands also accept a sampling rate as a second optional argument, which reduces the sampling rate only for the duration of the command. For example, playZero(128, AWG_RATE_1200MHZ) will play 128 samples of zeros at a sampling rate of 1.2 GSa/s, corresponding to 106.7 ns.

To use playZero or playHold within the command table, a command table entry must be made. See Tutorials for more information on using playZero within the command table. Similar syntax applies for using playHold within the command table. The table entries can be used within a sequence by adding the appropriate executeTableEntry command to the sequencer code.

Depending on the experiment being performed, it can make sense to use the playZero sequencer command in some cases and the command table version in other cases (and similarly for playHold). Generally speaking, the sequencer commands should be used when the length is variable, when the length is 2^19 - 16 or fewer samples, or when the optional sampling rate argument is used. When using a variable argument, such as when performing a sweep of the evolution time between two pulses with playZero or of the length of a pulse with playHold (see Tutorials) , the sequencer command must be used, as the playZero and playHold functionality within the command table cannot support variable arguments. A similar restriction applies to the optional sampling rate argument.

When the length is 2^19 - 16 or fewer samples, the sequencer commands map to a single assembly instruction. Once the length is more than or equal to 2^19 samples, however, the sequencer commands map to at least two assembly instructions instead. Additionally, when using the optional sampling rate divider argument of the sequencer commands, playZero and playHold always map to at least three assembly instructions, regardless of the length in samples. When using the command table to perform playZero or playHold functionality, the corresponding executeTableEntry command always maps to a single assembly instruction, regardless of the length of the playZero or playHold, at the cost of using a command table entry.

Using Qubit Feedback Data in a Sequence¶

The AWG can make decisions depending on the feedback data received over ZSync . There are two primary ways to use the feedback data received: by using the command getFeedback and storing the result in a variable, or by using the feedback data directly as the argument of executeTableEntry. To directly make decisions about which pulse to play, it is recommended to use the feedback arguments of the executeTableEntry. For example, active reset in which the qubit data is passed to an SG Channel over a ZSync connection to a PQSC could involve a snippet of code like the following:

configureFeedbackProcessing(ZSYNC_DATA_PROCESSED_A, RESULT_INDEX, RESULT_SIZE, OFFSET);
waitZSyncTrigger();
executeTableEntry(ZSYNC_DATA_PROCESSED_A, feedback_time);

The first instruction, configureFeedbackProcessing is used to configure the processing of the feedback data. The message will be reduced and an optional offset could be added. If the instruction is omitted, no trimming of the message will be done and the offset will be zero. Alternatively, the constant ZSYNC_DATA_RAW could be used in the following instructions, and no processing will be performed. The first argument of executeTableEntry specify the source and the processing to determines which command table entry should be played, and the second argument accounts for the time between when the ZSync trigger is received and when the updated qubit readout data is available for use. The exact value of feedback_time (specified in number of sequencer clock cycles) depends on the combination of equipment being used as well as the experiment being performed and must be characterized by the user. For this example, the command table has been defined to play no pulse if the appropriate bit of the trimmed message is 0 or to play a pi-pulse if is 1:

## Qubit was in state 0
table[0].waveform.playZero = True
table[0].waveform.length = PI_PULSE_LENGTH

## Qubit was in state 1
table[1].waveform.index = 0
table[1].amplitude0.value = PI_AMPLITUDE
table[1].amplitude1.value = -PI_AMPLITUDE

In other cases, storing the results of getFeedback in a variable is the recommended route. For example, repeat until success requires repeated checking of the qubit readout data, but does not require a pulse to be played until the success criterion is met. Such an experiment might include sequencer code snippet like the following:

configureFeedbackProcessing(ZSYNC_DATA_PROCESSED_A, RESULT_INDEX, RESULT_SIZE, OFFSET);
waitZSyncTrigger();

do {
  // preceding code
  failure = getFeedback(ZSYNC_DATA_PROCESSED_A, feedback_time); // check for failure
  // following code
} while (failure)

// Success pulse
playWave(w_success);

The success pulse is played only once the success condition has been met, and the type of pulse played does not directly depend on the feedback data received.

When testing a new sequence, it can also be useful to store the feedback message, as the value of the variable can be monitored by writing to a user register:

waitZSyncTrigger();
feedback_data = getFeedback(ZSYNC_DATA_RAW, feedback_time);
setUserReg(0, feedback_data);

The above code will write the feedback data available at feedback_time sequencer clock cycles after the ZSync trigger is received. The data is written to user register 0.

Functional Elements¶

Table 16: AWG tab: Control sub-tab
Control/Tool	Option/Range	Description
Start		Runs the AWG.
Sampling Rate	293 kSa/s to 2.4 GSa/s	AWG sampling rate. This value is used by default and can be overridden in the Sequence program. The numeric values are rounded for display purposes. The exact values are equal to the base sampling rate divided by 2^n, where n is an integer between 0 and 13.
Round oscillator frequencies.		Round oscillator frequencies to nearest commensurable with 225 MHz.
Status		Display compiler errors and warnings.
Compile Status	grey/green/yellow/red	Sequence program compilation status. Grey: No compilation started yet. Green: Compilation successful. Yellow: Compiler warnings (see status field). Red: Compilation failed (see status field).
Upload Progress	0% to 100%	The percentage of the sequencer program already uploaded to the device.
Upload Status	grey/yellow/green	Indicates the upload status of the compiled AWG sequence. Grey: Nothing has been uploaded. Yellow: Upload in progress. Green: Compiled sequence has been uploaded.
Register selector		Select the number of the user register value to be edited.
Register	0 to 2^32	Integer user register value. The sequencer has reading and writing access to the user register values during run time.
Input File		External source code file to be compiled.
Example File		Load pre-installed example sequence program.
New		Create a new sequence program.
Revert		Undo the changes made to the current program and go back to the contents of the original file.
Save (Ctrl+S)		Compile and save the current program displayed in the Sequence Editor. Overwrites the original file.
Save as... (Ctrl+Shift+S)		Compile and save the current program displayed in the Sequence Editor under a new name.
Automatic upload	ON / OFF	If enabled, the sequence program is automatically uploaded to the device after clicking Save and if the compilation was successful.
To Device		Sequence program will be compiled and, if the compilation was successful, uploaded to the device.
Multi-Device	ON / OFF	Compile the program for use with multiple devices. If enabled, the program will be compiled for and uploaded to the devices currently synchronized in the Multi-Device Sync tab.
Sync Status	grey/green/yellow	Sequence program synchronization status. Grey: No program loaded on device. Green: Program in sync with device. Yellow: Sequence program in editor differs from the one running on the device.

Table 17: AWG tab: Waveform sub-tab
Control/Tool	Option/Range	Description
Wave Selection		Select wave for display in the waveform viewer. If greyed out, the corresponding wave is too long for display.
Waveforms		Lists all waveforms used by the current sequence program.
Mem Usage (%)	0 to 100	Amount of the used waveform data relative to the device cache memory. The cache memory provides space for 512 kSa of waveform data per AWG core. Mem Usage > 100% means that waveforms must be loaded from the main memory (64 or 500 MSa per channel) during playback.

Table 18: AWG tab: Trigger sub-tab
Control/Tool	Option/Range	Description
Trigger State	grey/green	State of the Trigger. Grey: No trigger detected. Green: Trigger detected.
Slope		Select the signal edge that should activate the trigger. The trigger will be level sensitive when the Level option is selected.
	Level	Level sensitive trigger.
	Rise	Rising edge trigger.
	Fall	Falling edge trigger.
	Both	Rising or falling edge trigger.
Level (V)	numeric value	Defines the analog trigger level.
Auxiliary Trigger State	grey/green	State of the Auxiliary Trigger. Grey: No trigger detected. Green: Trigger detected.
Signal		Selects the digital trigger source signal.
DIO/Zsync Trigger state	grey/green	Indicates that triggers are generated from the DIO or ZSync interface to the AWG.
Strobe Index	16 to 31	Selects the index n of the DIO interface bit (notation DIO[n] in the Specification chapter of the User Manual) to be used as a STROBE signal input in connection with the waitDIOTrigger sequencer instruction.
Strobe Slope		Select the signal edge that activates the STROBE trigger in connection with the waitDIOTrigger sequencer instruction.
	None	Off
	Rise	Rising edge trigger
	Fall	Falling edge trigger
	Both	Rising or falling edge trigger
Valid Index	16 to 31	Selects the index n of the DIO interface bit (notation DIO[n] in the Specification chapter of the User Manual) to be used as a VALID signal input, i.e. a qualifier indicating that a valid codeword is available on the DIO interface.
Valid Polarity		Polarity of the VALID bit that indicates that a codeword is available on the DIO interface.
	None	VALID bit is ignored.
	Low	VALID bit must be logical low.
	High	VALID bit must be logical high.
	Both	VALID bit may be logical high or logical low.
Codeword Mask	0 to 1023	10-bit value to select the bits of the DIO interface input state (notation DIO[n] in the Specification chapter of the User Manual) to be used as a codeword in connection with the playWaveDIO sequencer instruction. The Codeword Mask is combined with the DIO interface input state by a bitwise AND operation after applying the Codeword Shift.
Codeword Shift	0 to 31	Defines the integer bit shift to be applied to the input state of the DIO interface (notation DIO[n] in the Specification chapter of the User Manual) to be used as a codeword for waveform selection in connection with the playWaveDIO sequencer instruction.
High bits		32-bit value indicating which bits on the DIO interface are detected as logic high.
Low bits		32-bit value indicating which bits on the DIO interface are detected as logic low.
Timing Error	grey/red	Indicates a timing error. A timing error is defined as an event where either the VALID or any of the data bits on the DIO interface change value at the same time as the STROBE bit.
Synchronization Enable		Enable multi-channel synchronization for this channel. The program will only execute once all channels with enabled synchronization are ready.

Table 19: AWG tab: Advanced sub-tab
Control/Tool	Option/Range	Description
Sequence Editor		Display and edit the sequence program.
Assembly	Text display	Displays the current sequence program in compiled form. Every line corresponds to one hardware instruction.
AWG Core		Select the AWG Core for which you want to display the assembly and command table information. Available select options (if any) depend on the Channel Grouping value.
Counter		Current position in the list of sequence instructions during execution.
Status	Running, Idle, Waiting	Displays the status of the sequencer on the instrument. Off: Ready, not running. Green: Running, not waiting for any trigger event. Yellow: Running, waiting for a trigger event. Red: Not ready (e.g., pending elf download, no elf downloaded)
Rerun	ON / OFF	Reruns the Sequencer program continuously. This way of looping a program results in timing jitter. For a jitter free signal implement a loop directly in the sequence program.
Mem Usage (%)	0 to 100	Size of the current sequence program relative to the device cache memory. The cache memory provides space for a maximum of 16384 instructions.
Clear		Clears the command table description for the selected AWG Core.
Status	grey/green/red	Displays the status of the command table of the selected AWG Core. Grey: no table description uploaded, Green: table description successfully uploaded, Red: Error occurred during uploading of the table description.
